479 3502 001 00
Lifting platform trolley: 350kg
|
|
|
|
Continue Shopping
|
DetailsDownload
|
Product Weight:
125 kg
|
|
|
|
|
Description:
|
|

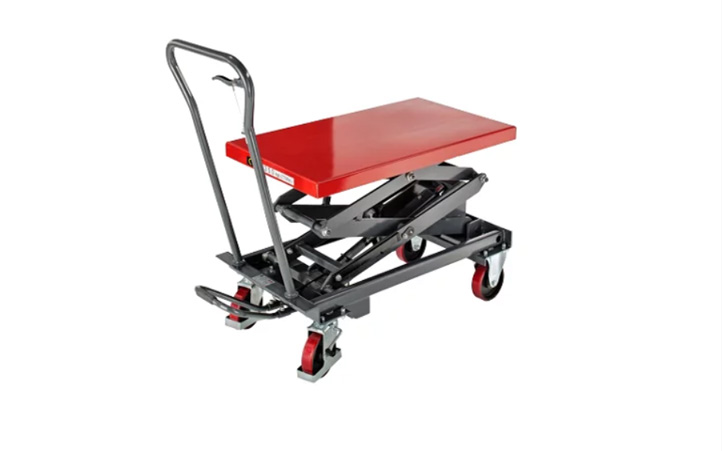

Lifting table
Lifting range 435 – 1500 mm, max. Load 350 kg
Lift with pump pedal, precise manual control of lowering. Durable and sophisticated devices. Service-friendly, with inspection supports.
Wheels

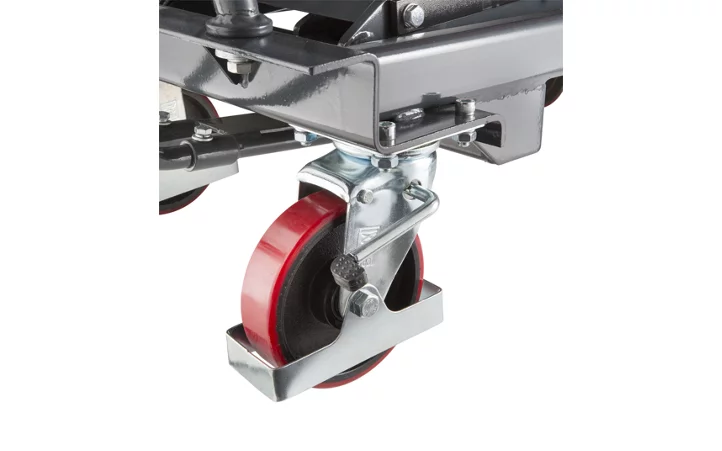

Two swivel castors with foot protection and wheel stop and two fixed castors. All castors with non-marking polyurethane tires.

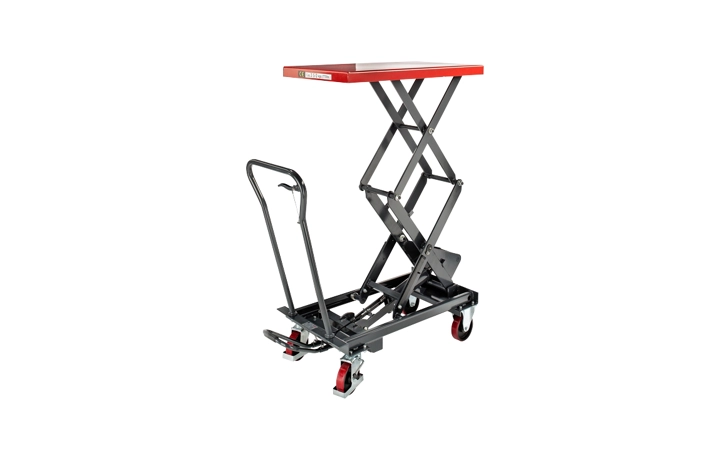

Version with extra-large lifting height
- Standard units in reliable quality
- Lift, lower, transport
- Ergonomic work at the right working height
- With double scissor mechanism
Technical Data
| Max. load |
350 kg |
| Lifting range |
435 – 1500 mm |
| Overall length |
1170 mm |
| Overall width |
520 mm |
| Platform material |
steel |
| Platform finish |
powder coated |
| Platform colour |
signal red RAL 3001 |
| Push handle finish |
powder coated |
| Push handle colour |
basalt grey RAL 7012 |
| Lift per pedal stroke |
15.2 mm |
| Pedal strokes to max. lift |
70 |
| Lift drive |
pedal hydraulics |
| Product type |
double scissor lifting platform truck |
| Wheel fittings |
2 swivel castors with foot protection
and wheel stops, 2 fixed castors |
| Wheel material |
polyurethane |
| Wheel diameter |
150 mm |
| Wheel bearing |
ball bearing |
| Frame finish |
powder coated |
| Frame colour |
basalt grey RAL 7012 |
| Weight |
125 kg |
| Platform width |
520 mm |
| Platform length |
920 mm |
| Feature |
mobile manual |
| Supplied |
partially assembled |
|
|
|
